eepos Products

The flexible modular system for transporting loads up to 2,000 kg

The basis of eepos one is our aluminium profiles, which have been designed with a load capacity of up to 2,000 kg. They are refined with the aluminium alloy EN AW 6063 T66, so that eepos one surface crane systems work safely and reliably in production halls, on production lines, assembly lines, work stations and also in harsh environments.

The accessories are largely made of galvanized steel or reinforced high-performance plastics. The exact interaction between our eepos trolleys and the trolley compartment enables jam-free smooth running, which almost completely relieves employees physically and at the same time increases productivity through ergonomic work processes.

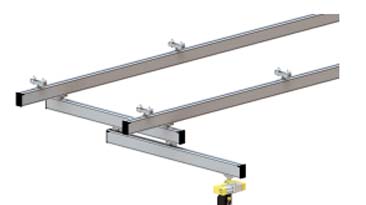

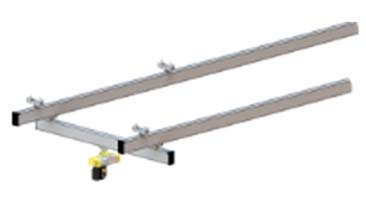

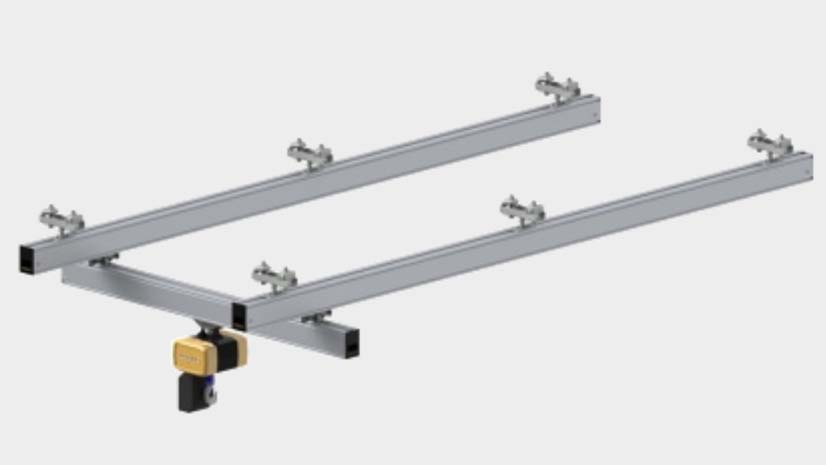

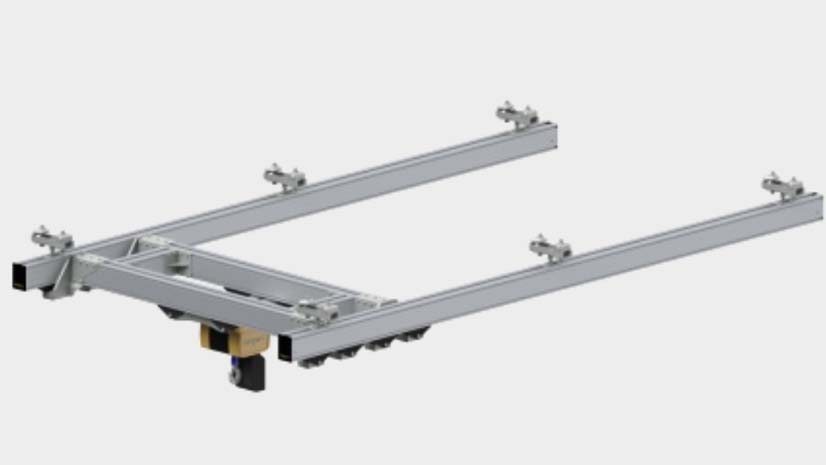

Single girder crane

The single girder crane combines the two-rail track with a crane bridge. This results in an optimal, area-wide possibility of material transport with simple operability.

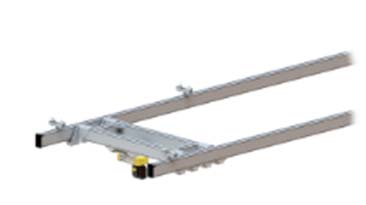

Telescopic crane

The eepos crane with telescopic bridge can access hall areas that were previously not usable for cranes. With the retraction, the telescopic crane is automatically pulled back into a defined position.

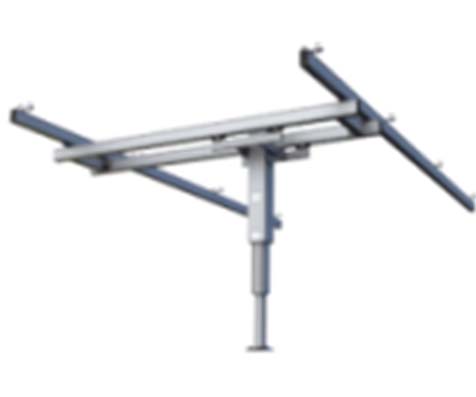

Elevated cranes

In the jacked-up version, the single-girder and double-girder crane is also suitable for environments with limited room height.

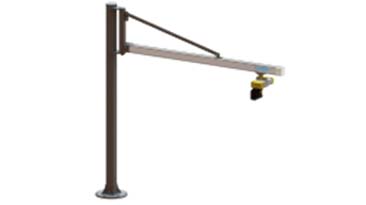

Wall and column mounted jib crane

The eepos one aluminum slewing cranes also use the components from the eepos one modular system. Available as a pillar or wall slewing crane, the jibs can be up to 6 meters long and offer a load capacity of up to 500 kg. The assembly using high-load anchors is quick, uncomplicated and clean.

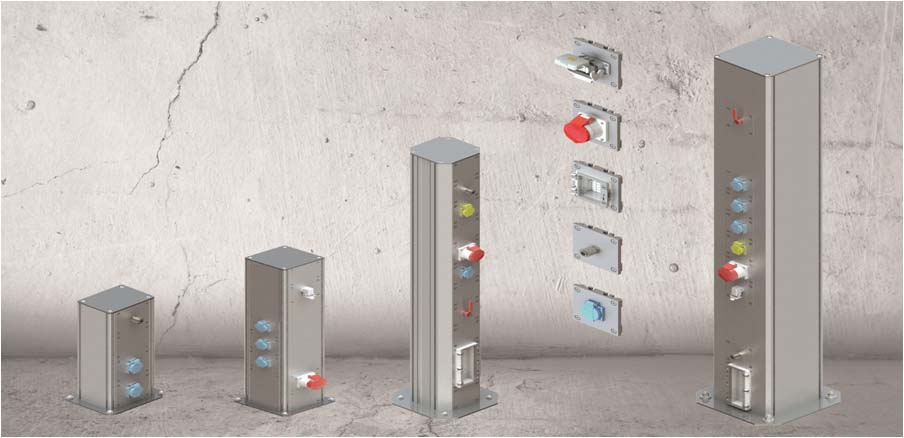

eepose Base Media Columns

  • The advantages of a modular, flexible and clean energy supply
  • Optimal supply of any desired workplace with electricity, data, compressed air, gas or cooling water
  • Freely configurable for every use
  • Optional swivel arm up to 100 kg load capacity possible
  • All module inserts can be easily removed, exchanged or expanded at the front
  • Four item-compatible grooves inside and outside of the column allow your own attachments

You can freely choose between 15 module inserts and 3 cover plates:



  • All module inserts can be removed and screwed from the outside and to the front
  • Standard in heights of 125 mm, 250 mm and 375 mm
  • Cover plates - also for your own connections or plugs

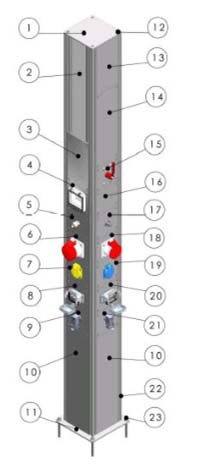

  • 1. Abdeckplatte
  • 2. Modulprofil 2000mm
  • 3. Leermodul 250mm
  • 4. Modul Sicherungsautomat 4TE
  • 5. Modul Druckluftkupplung
  • 6.Modul Industriesteckdose 400V/32A
  • 7. Module Ethernet 2-fach
  • 8. Modul Harting Stecker6B Abgriff
  • 9. Modul Harting Stecker3A Abgriff
  • 10. Leermodul 500mm
  • 11. Bodenplatte
  • 12. Schneidschraube

  • 13. Leermodul 250mm
  • 14. Leermodul 375mm
  • 15. Modul Absperrventil Druckluft
  • 16. Leermodul 125mm
  • 17. Modul Druckluftzuleitung
  • 18. Modul Industriesteckdose 400V/16 A
  • 19. Modul Industriesteckdose 230V
  • 20. Modul Harting Stecker 6B Einspeisung
  • 21. Modul Harting Stecker 3a Einspeisung
  • 22. Eckprofil
  • 23. Ankerbolzen

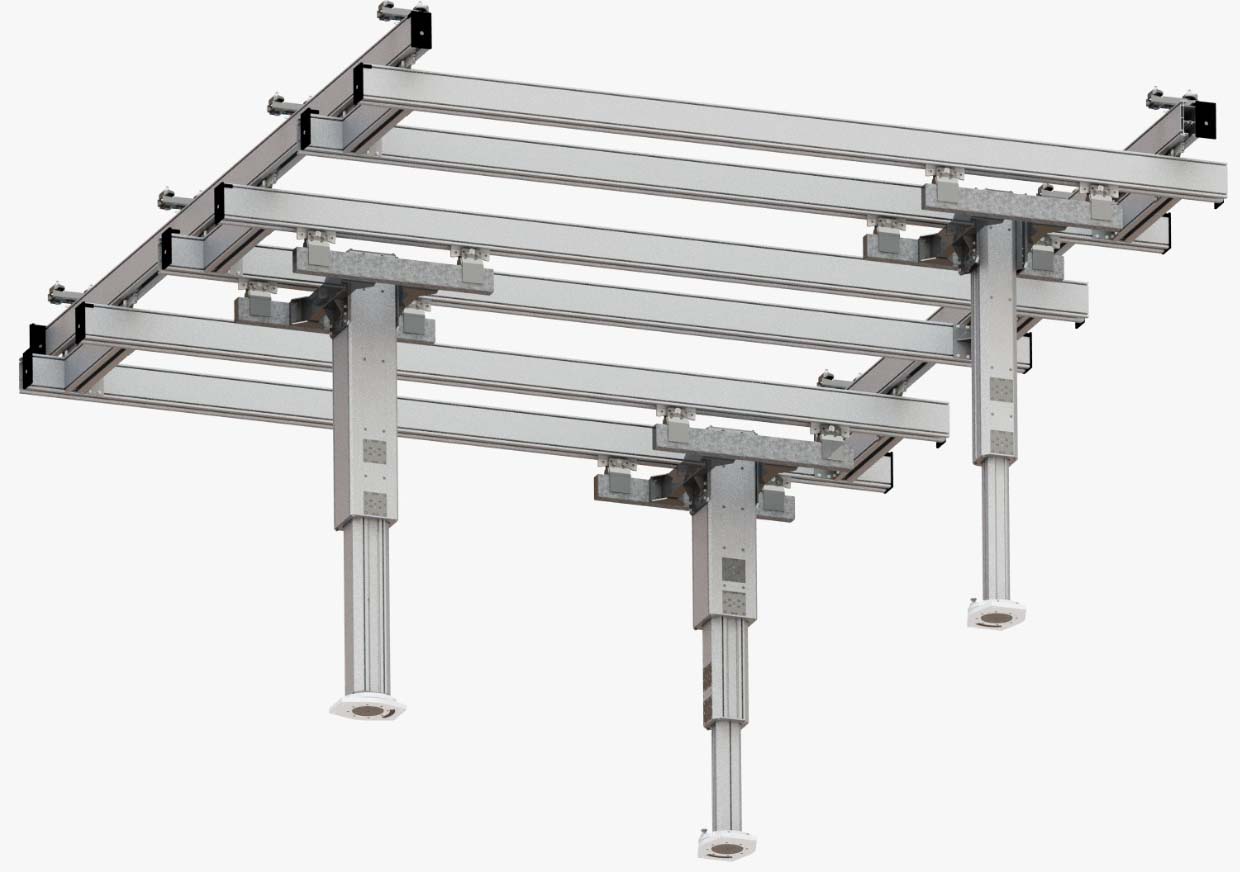

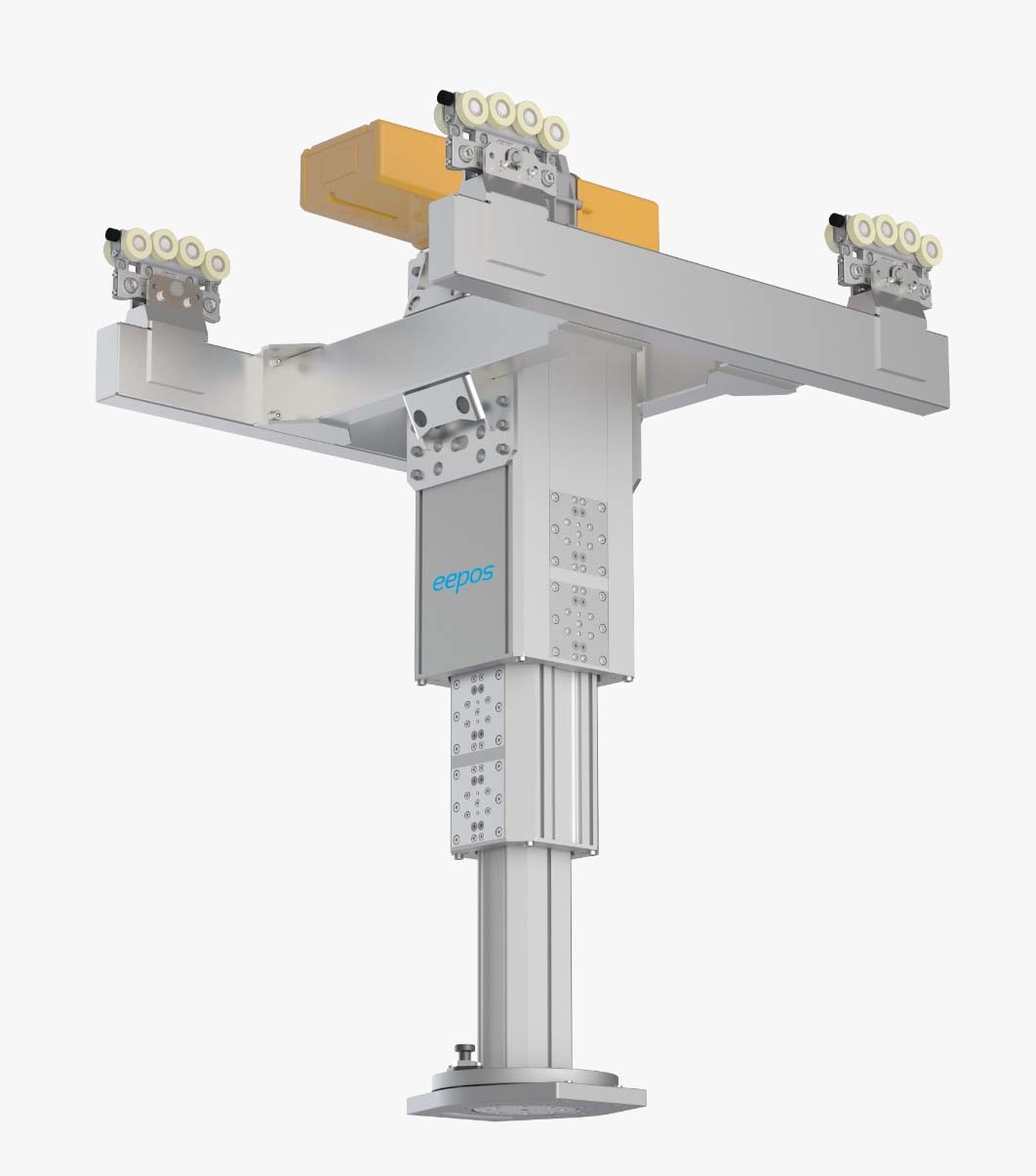

eepos Move

    The innovative modular system for aluminium lifting axes Use


  • The eepos move lifting axis was developed for tool handling, container and load transport up to 500 kg and 2,500 Nm torque absorption with eccentric forces
  • The installation dimensions and stroke of the lifting axes are determined on a customer-specific basis
  • eepos move S and L can be supplied as individual lifting axes or can be set up completely including a lifting motor or pneumatic control
  • optionally with trolley frame and pivot bearing To Use
  • easy and ergonomic handling of eccentric loads
  • highly resilient, smooth-running and play-free and low-maintenance even with eccentric loads
  • eepos move offers various mounting options thanks to the item grooves on the outside

Product features


  • The eepos move lifting axis was developed for tool handling, container and load transport up to 500 kg and 2,500 Nm torque absorption with eccentric forces
  • The installation dimensions and stroke of the lifting axes are determined on a customer-specific basis
  • eepos move S and L can be supplied as individual lifting axes or can be set up completely including a lifting motor or pneumatic control
  • optionally with trolley frame and pivot bearing To Use
  • easy and ergonomic handling of eccentric loads
  • highly resilient, smooth-running and play-free and low-maintenance even with eccentric loads
  • eepos move offers various mounting options thanks to the item grooves on the outside
  • Modular construction with compact external dimensions (eepos move S: 130x130 mm for the outer telescope segment T13, eepos move L: 250x250 mm for the outer telescope segment T25)
  • Hollow chamber design for an optimal balance between weight, rigidity and stability
  • Fast pre-assembly and assembly possible thanks to standardized components such as extruded profiles, storage units, etc
  • Execution with spring balancer, electric chain hoist or pneumatic control according to customer specifications
  • Depending on the application, the move lifting axis must be equipped with a torque cross and / or torque support or trolley frame, especially in screw applications or similar cases in which torsional moments occur
